DC 65
GA 121
Technical Specifications
버 없이 용접 전 작업을 위한 수직 페이싱 작업
- 정확한 수동 전진방식(0.1mm)
- 18V 리튬이온 배터리 장착(전기코드 방식도 가능)
- 분해없이 빠른 툴 교체가능, 툴홀더 장착으로 베벨링 작업가능
- 엑서 절단기와 엔드밀로 작업 후 용접 시 용접성능 향상
- 고품질 엔드밀 작업: 클린배관, 마이크로배관(반도체, 쌔니타리 클린배관)

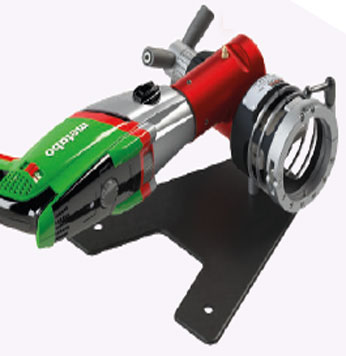

Burr-free tube squaring machine
- Accurate manual advance (0.1 mm steps)
- Light and compact: 7.1 kg with battery
- 30°and 45°outside bevel possible with optional tool holder.
  • GA 121

    Jaw opens wide for easy positioning of tube.

  • GA 121

    QuiXS: Lets you change the head or fit a chuck in just a few seconds.

  • GA 121

    Tool adjusted to the diameter of tube to be machined in just a few seconds.

DC 65-M
GA 121
Technical Specifications
Burr-free tube squaring machine
- Accurate manual advance (0.1 mm steps)
- Quick blade adjustment, no disassembly required
- Light and compact: 7.1 kg with battery
- Removable support foot
- 30°and 45°outside bevel possible with optional tool holder.
- squaring and bevelling in one operation*
- Reduction housing in cast aluminium
Mains motor
- Motor 1100W.
- Two speed reducer with thumbwheel speed change.
- Top quality speed changer.
- Anti-start protection.
  • GA 121

    Jaw opens wide for easy positioning of tube.

  • GA 121

    HSS TIALN HIGH QIALITY Reversible blade (two cutting edges)

  • GA 121

    Tool adjusted to the diameter of tube to be machined in just a few seconds.

DC 65 FACING

제원

Machine Ref Dimension(mm) Ext. bevelling Weight(kg) Voltage*
DC65-G2 3-63.5 Yes 7.1 Battery Charger 220 V, 18 VOLTS
DCPACK-G 3-63.5 Yes 7.1 Battery Charger 220 V, 18 VOLTS
DC65-Mx 3-63.5 Yes 8.1 Mains 220V - 110V
DCPACK-Mx 3-63.5 Yes 8.1 Mains 220V - 110V
