  • home Home > 제품소개 > 절단기 > CC122~CC322

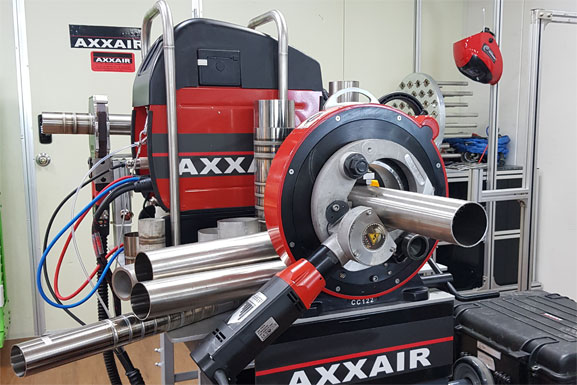

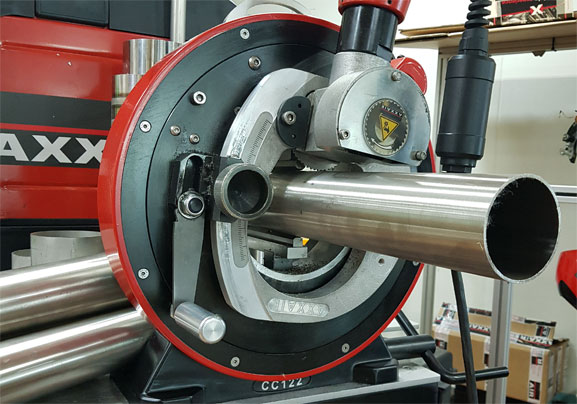

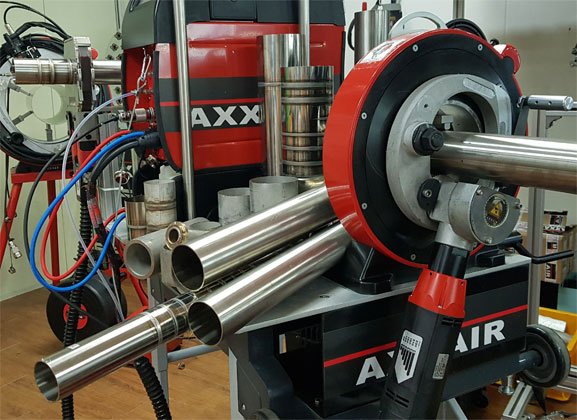

CC 122
CC121
Technical Specifications
오르비탈 수직절단
- 버, 불꽃발생 없이 정확한 수직절단 가능
- 쌔니타리, 반도체 배관 등 클린배관공사에 적합
- 스테인레스 튜브 등 모든 파이프 절단
- 간편한 이동, 설치 용이
- 로테이션휠 기본장착으로 작업용이, 안전성 확보
- 동심원 클랭핌: 얇고 작은 사이즈로 파이프도 변형없이 절단가능
- Basic stainless steel jaws Ø1 to Ø4,72(24 to 120mm)
- Additional jaws Ø0,25 to Ø4,25(5 to 108mm)

Weight : 37 kg (easy handling)

  • 121 스몰

    Blade-jaw distance of 2/13.5 mm. Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 4 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard: extends blade life and optimizes cutting quality

121ECO Cutting

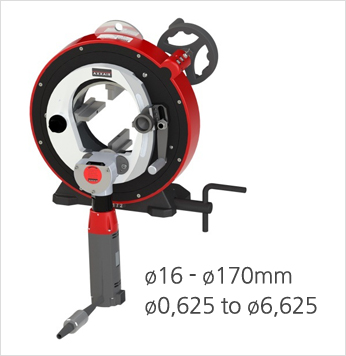

CC 172
171
Technical Specifications
- Basic stainless steel jaws Ø2,75 to Ø6,625(70 to 170 mm )
- Additional jaws Ø0,625 to Ø4,65( 16 to 118mm)
- Cutting precision: perpendicular cutting <0.25 mm
- Scalability: may be transformed into a bevelling and orbital welding machine
- Dual-output cutting motor with 2 blade positions for uptake

Weight : 44 kg (easy handling)

  • 121 스몰

    Blade-jaw distance of 2/13.5 mm. Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 4 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard : extends blade life and optimizes cutting quality

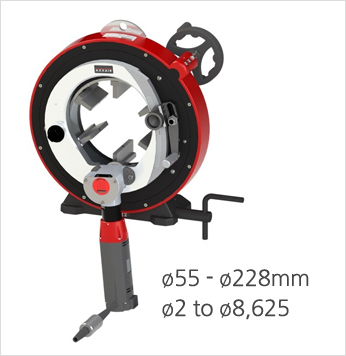

CC 222
121 스몰
Technical Specifications
- Basic stainless steel jaws Ø4,55 to 8,625(Ø116 to Ø225mm)
- Additional jaws Ø2 to Ø6,65(Ø59 to Ø169mm)
- Cutting precision: perpendicular cutting <0.25 mm
- Dual-output cutting motor with 2 blade positions for uptake
- Scalability: may be transformed into a bevelling and orbital welding machine

Weight : 51 kg (easy handling)

  • 121 스몰

    Optimized Blade-jaws distance Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 6 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard: extends blade life and optimizes cutting quality

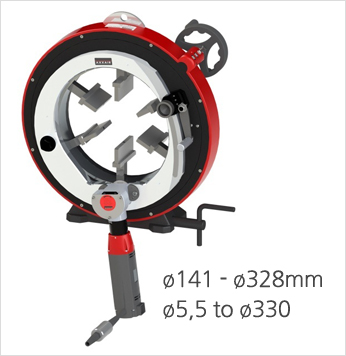

CC 322
121 스몰
Technical Specifications
- Basic stainless steel jaws Ø8,5 to 12,75(Ø216 to Ø330 mm)
- Additional jaws Ø5,5 to Ø10(Ø140 to Ø256mm)
- Cutting precision: perpendicular cuts < 0.25mm
- Dual-output cutting motor with 2 blade positions for uptake
- Scalability: may be transformed into a bevelling and orbital welding machine • Lifting eye

Weight : 73 kg (easy handling)

  • 121 스몰

    Optimized Blade-jaws distance Limits vibration and tube distortion

  • 121 스몰

    Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion

  • 121 스몰

    Motors: slow, fast, pneumatic

  • 121 스몰

    Rotation handle as standard: extends blade life and optimizes cutting quality

321MS18 Cutting
