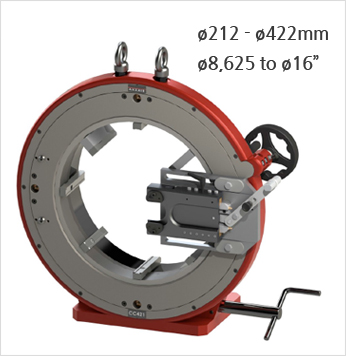

CC 421
빅
Technical Specifications
오르비탈 수직절단
- 버, 불꽃발생 없이 정확한 수직절단 가능
- 쌔니타리, 반도체 배관 등 클린배관공사에 적합
- 스테인레스 튜브 등 모든 파이프 절단
- 간편한 이동, 설치 용이
- 로테이션휠 기본장착으로 작업용이, 안전성 확보
- 동심원 클랭핌: 얇고 작은 사이즈로 파이프도 변형없이 절단가능
- Basic stainless steel jaws Ø 12"to 16"(Ø 350 to Ø 420 mm)
- Additional jaws Ø 8,625 to 12,75"(Ø 212 to Ø 352 mm)
- Cutting precision: perpendicular cutting <0.4mm

Weight : 176 kg

  • CC421

    Optimiszed blade-jaws distance Limits vibration and tube distortion

  • CC421

    Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion

  • CC421

    Motors: electric and pneumatic

  • CC421

    Rotation handle as standard: extends blade life and optimizes cutting quality

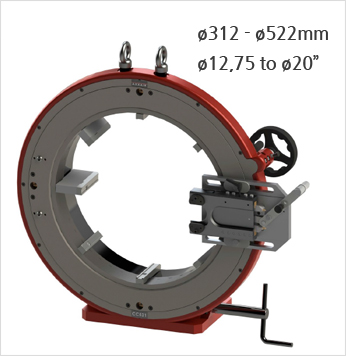

CC 521
빅
Technical Specifications
- Basic stainless steel jaws Ø 15,5"to 20"(Ø 450 to Ø 522mm)
- Additional jaws Ø 12,75"to 15,5"( Ø 312 to Ø 452mm)
- Cutting precision: perpendicular cuts < 0.4mm
- Dual-output cutting motor with 2 blade positions for uptake
- Lifting eye

Weight : 200 kg

  • CC 521

    Optimiszed blade-jaws distance Limits vibration and tube distortion

  • CC 521

    Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion

  • CC 521

    Motors: electric and pneumatic

  • CC 521

    Rotation handle as standard: extends blade life and optimizes cutting quality

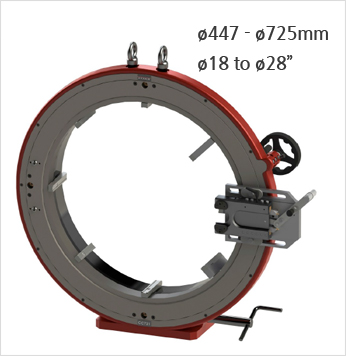

CC 721
CC 721
Technical Specifications
- Basic stainless steel jaws Ø18"to Ø 28"(Ø653 to Ø 725mm)
- Additional jaws Ø 12,75" to 18" (Ø 447 to Ø 654mm)
- Cutting precision: perpendicular cutting < 0.4mm
- Lifting eye

Weight : 245 kg

  • CC 721

    Optimiszed blade-jaws distance Limits vibration and tube distortion

  • CC 721

    Concentric clamping with 8 jaws in stainless steel, standard, to eliminate tube distortion

  • CC 721

    Motors: electric and pneumatic

  • CC 721

    Rotation handle as standard: extends blade life and optimizes cutting quality

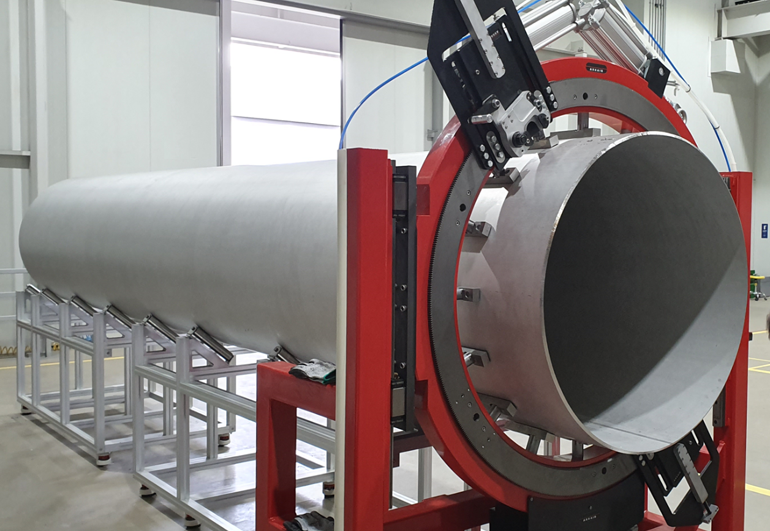

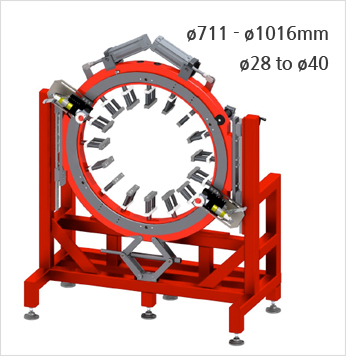

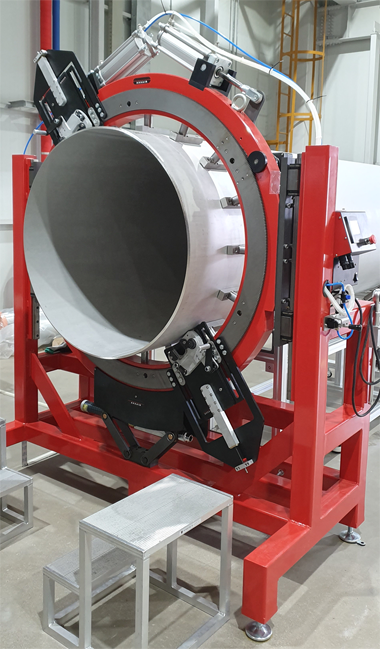

CC 1100
CC 1100
Technical Specifications
- Basic stainless steel jawsØ 28"to 40"(Ø711 to Ø1016 mm)
- Cutting precision: perpendicular cuts < 0.4 mm

Weight : 900 kg

  • CC 1100

    Machine height adjustment machine

  • CC 1100

    Concentric clamping with 16 jaws in stainless steel, standard, to eliminate distortion of thin tubes

  • CC 1100

    Automatic pneumatic clamping

  • CC 1100

    Rotation handle as standard: extends blade life and optimizes cutting quality

Accessories
Accessories
Accessories
Accessories

CC520F25 Big Diameter Cutting
